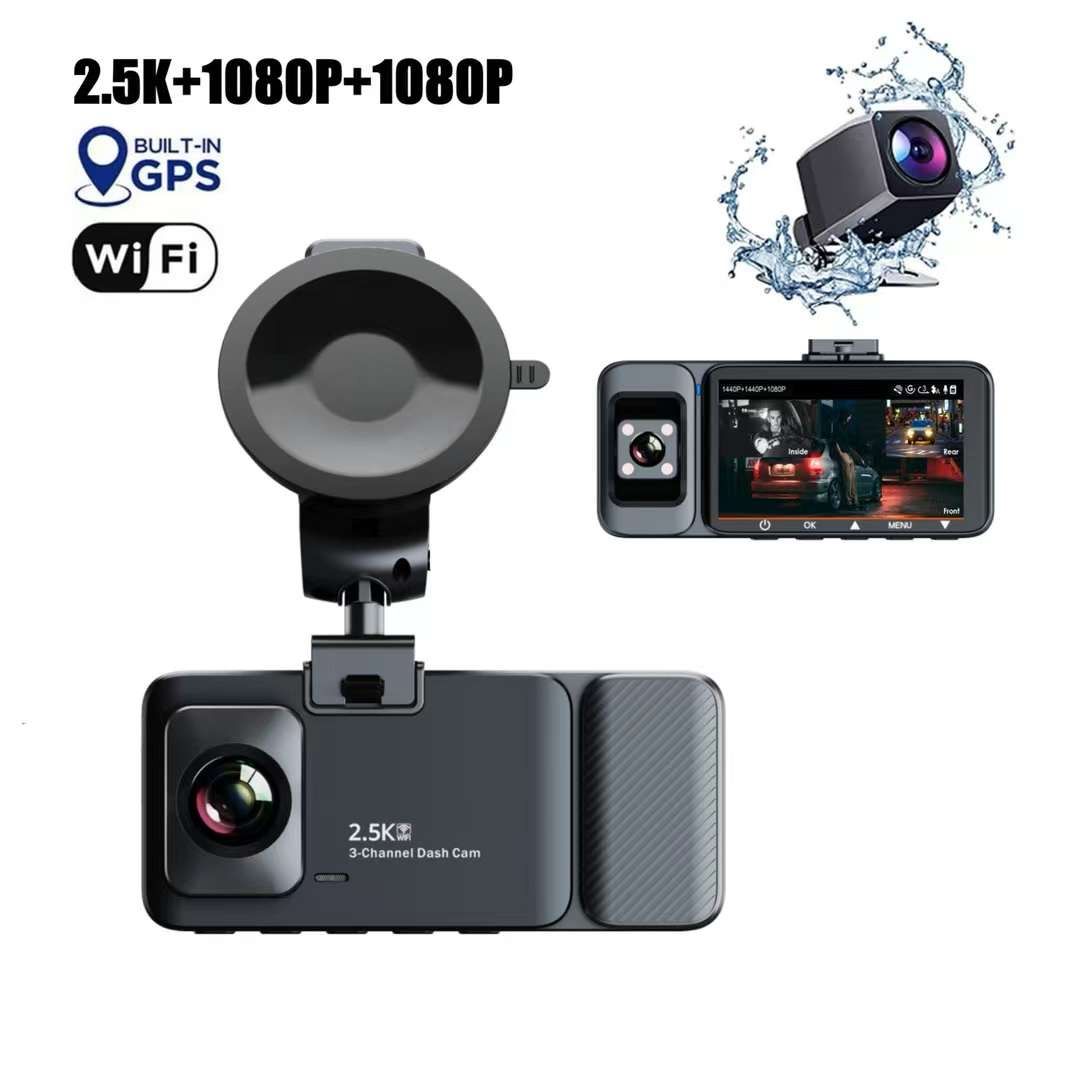

3 CHANNEL K02 DASH CAM 2.5K 1080P WITH BUILTIN GPS WIFI

Detail:

project name K02
Product solutions Based on NT9656X, 3 Inch LCD, 3 -way camera, multi -function expansion card machine
version number V0.1
Specifications
Conventional specification
processor NOVATEK NT9656X
DDR Built -in 1GB DDR3
Flash 8MB SPI NORFlash
Image sensor A 2K/2.5K, Front Photo
Image sensor B GC2053, in the Car
Image sensor C GC2053, Pull the line
Image sensor D /
Lens A Client selection, Front Photo
Lens B Client selection, in the car
Lens C Client selection Pull the line
Lens D /
Maximum video resolution 2.5K+1080+1080P/2k+1080+1080P /1080+1080+1080P
The maximum photo resolution (screenshot) A+B+C：2K+1080P+1080P
Coding H.264/H.265
Video coding 4Mbps~8Mbps（1080P）
Video encoding format MP4
Photo format JPEG
Collision sensor Three -axis acceleration sensor
Record mode 3 minutes cycle video (default)
storage TF card (Class 10 or above, the maximum support 128G)
Video output /
Start Time <7s (power -on to screen display) Working voltage range 5V~5.3V The rated work voltage DC 5V Working current TBD Quiescent Current <500ua Work temperature (℃) -20~70℃ Storage temperature (℃) -30~80℃ Display 3 "inch screen Super capacitor/battery Compatible supercapacitors/batteries WIFI 2.4G WiFi trumpet √ Speaker amplifier √ microphone √ USB function PC CAM/POWER/Storage interface T-C button This machine 5 key Reset button √ Power supply USB 5V Safety / Customized specifications GPS Compatible (drawing module) Stuck hot plug -in / Power detection Battery electricity detection RTC Button battery storage time APP other
